As additive technologies, materials, and processes mature, so does the argument for using additive manufacturing (AM) to make production parts—let go of traditional manufacturing constraints and embrace a new mindset that explores additive manufacturing as a serious means of production.



ADDITIVE MANUFACTURING VS. INJECTION MOLDING

The additive technologies most commonly used for production of plastic parts include Fused Deposition Modeling (FDM), Selective Laser Sintering (SLS), and Multi Jet Fusion (MJF). The break-even point of AM compared to injection molding (IM) was once a few hundred parts but is now pushing into the thousands with trends showing the cut-off point even higher in the coming years. Although, if you are projecting production volumes in the 10’s, 100’s of thousands, or even millions, AM can still prove to be a strong option for manufacturing throughout the early stages of production. AM has many other benefits not explicit to part price comparisons.


#1 // Choose From a Wide Range of Production-Grade Materials

Material development has been, and continues to be, a priority within the additive manufacturing community (see the chart for an example material comparison).

#2 // Reduce Total Cost of Ownership & Time-to-Market

Soft launch or beta-testing can easily inform the design process with little impact on per-part cost. Skip steel safe concerns or scrapping an expensive mold when a tool can’t be reworked.

Lead times for AM can be measured in hours/days instead of weeks/months. Avoid tooling altogether or for an initial release while tooling kicks off and production ramps up.

#3 // Enable Greater Design Flexibility & Break Free From Traditional Manufacturing Constraints

Get parts on demand using the latest file revisions. Modifications, improvements, and customization can be implemented at any time because introducing a change in production is as easy as updating the CAD.

An exciting use of AM is to solve the unsolvable with the freedom of design—traditional methods have undercut limitations and can’t accommodate complex structures. Complexity and severe undercuts are possible with AM.

MATERIAL COMPARISON
Arkema Rilsamid® PA12 for Injection Molding
PA12 for HP's Multi Jet Fusion (MJF)
Tensile Strength
43 MPa / 6240 psi
48 MPa / 6960 psi
Tensile Modulus
1440 MPa / 208 ksi
1800 MPa / 261 ksi
Elongation at Break
50%
20%
Charpy Impact, Notched
0.7 J/cm^2
0.95 J/cm^2
HDT @ 0.45 MPa
HDT @ 1.82 MPa
135 ºC
55 ºC
175 ºC
95 ºC
Datasheets
View PDF Download Pdf
View PDF Download Pdf


Direct Part Replacement

As designers and engineers become more accustomed to using AM, and more materials become readily available at lower prices, additive technologies will only continue to grow as a significant force in the manufacturing process. AM has steadily matured into a means of enhancing multiple stages of the product development process, including the production of end-use parts. This process, termed Direct Digital Manufacturing (DDM), is when AM is used to fabricate the final product and/or parts used during production and assembly of finished goods.

The easiest way to use AM is what is referred to as direct part replacement—this is when a part is designed for a traditional manufacturing method but is made using AM instead. Advantages to taking this approach can be accelerated lead-times and lower costs. It is common to opt for direct part replacement because only a few thousand of parts are required or as a bridge-to-production solution while tooling and injection molding ramp up.


Featured Part Example

(A) Accelerated Lead-Time—While the cost per part is close in this example, the critical requirement was getting parts in days, not weeks. FATHOM recommends taking an AM approach as a bridge-to-production solution or avoid tooling and build parts as needed.

Quantity Required // 3,500
AM Part Cost // $3.52 ea (Lead-Time of 5 Days)
IM Part Cost // $3.60 ea (Lead-Time of 35-40 Days, Prototype Tool)
Break-Even Point // 3,740 Parts
Material Used & Weight // PA12 (4.6 g)
Part Dimensions // 25 mm × 23 mm × 25 mm

Injection Molding with Amortized Tool Price


Additional Part Examples

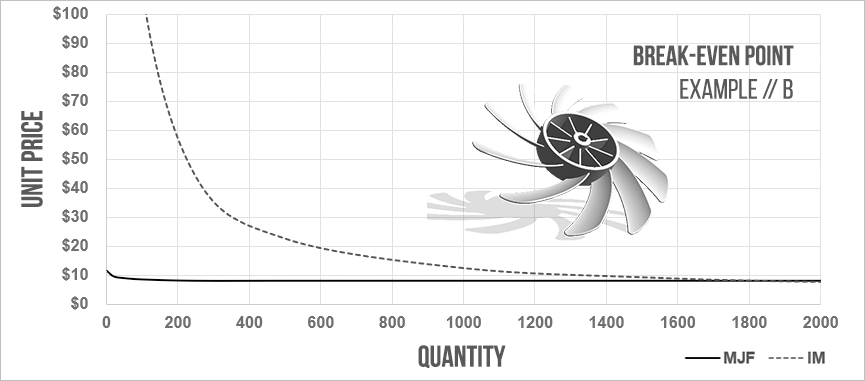

(B) Limited Production Run—The tooling cost of this particular part is high because of a complex parting line and challenging features. When a lower volume of parts is required, FATHOM recommends taking an AM approach to save on cost and time.

Quantity Required // 1,500
AM Part Cost // $8.18 ea (Lead-Time of 6 Days)
IM Part Cost // $12.46 ea (Lead-Time of 40-56 Days)
Break-Even Point // 1,829 Parts
Material Used & Weight // Glass-Filled PA12 (14.2 g)
Part Dimensions // 111.83 mm × 15 mm × 109.24 mm

Injection Molding with Amortized Tool Price


(C) Beta-Testing—This part is small and easy to nest within an MJF build envelope which makes it inexpensive to additively manufacture—also, less expensive for product testing when design changes are likely to follow. The value in this example is speed and design agility.

Quantity Required // 1,000
AM Part Cost // $9.90 ea (Lead-Time of 3 Days)
IM Part Cost // $8.68 ea (Lead-Time of 35-42 Days)
Break-Even Point // 815 Parts
Material Used & Weight // PA12 (14.8 g)
Part Dimensions // 68.64 mm × 69.88 mm × 50.65 mm

Injection Molding with Amortized Tool Price



DESIGN FOR ADDITIVE MANUFACTURING

The adoption of a DDM is leading to innovative product designs, shattering long-held manufacturing barriers, and making product development both less risky and more efficient. Check out the examples below that demonstrate how to better leverage the advantages of taking a design for additive manufacturing (DFAM) approach to production parts (thinking beyond direct part replacement). This type of approach is guided by AM's design freedom, manufacturing possibilities, and technical limitations. Considerations when designing for additive manufacturing extend beyond the minimum print requirements—a DFAM mindset recognizes the variety of new possibilities for the form something can take when designing specifically for AM.


Featured Part Example

(D) Optimized Design—Traditional processes come with strict design rules to ensure cost effective and reliable manufacturability. Even more, many complex designs enabled by AM are unmanufacturable using traditional methods. In this example, the improved design cannot be molded. View blog post to learn more about this part.

Advantage // Performance Improvement & Weight Reduction
Quantity Required // 1,000
AM Part Cost of Optimized Design // $15.89 ea (Lead-Time of 4 Days)
IM Part Cost of Original Design // $18.15 ea (Lead-Time of 35-42 Days)
Break-Even Point // 1,249 Parts
Material Used & Weight // PA12 (27.4 g)
Part Dimensions // 62.8 mm x 53.8 mm x 63.7 mm

Injection Molding with Amortized Tool Price


Additional Part Examples


(E) Function Assembly // Combining parts of an assembly into a single build makes for a very compelling use of AM—reducing part count and cuts assembly costs. In this example, two tools and stock components would have been needed, but it’s built as one movable assembly using AM. The value is production speed and no assembly required.

Advantage // No Assembly Required
Quantity Required // 1,000
AM Part Cost // $12.83 ea (Lead-Time of 3 Days)
IM Part Cost // $12.58 ea (Lead-Time of 35-42 Days, Prototype Tool)
Break-Even Point // 960 Parts
Material Used & Weight // PA12 (32.9 g)
Part Dimensions // 64 mm × 19.35 mm × 60 mm

Injection Molding with Amortized Tool Price

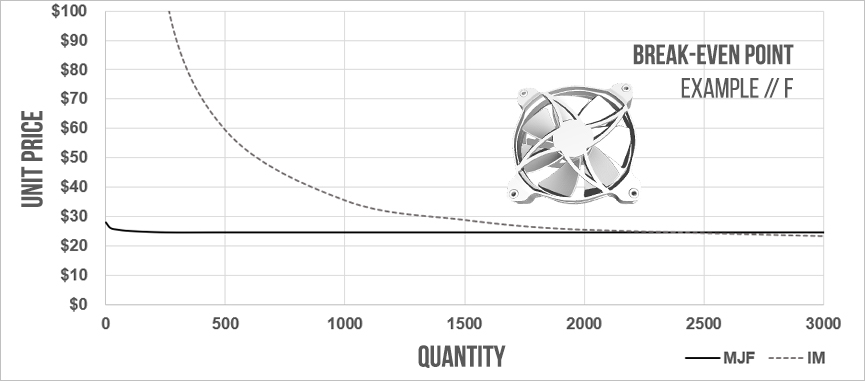

(F) Part Consolidation // Taking a part consolidation approach not only reduces costs incurred (e.g. needing multiple tools), but it also reduces other costs, defects, human error, and stacked tolerances associated with assembly. In this example, three tools would be needed but the parts can be made as one using AM.

Advantage // Consolidation of a 5-Part Assembly
Quantity Needed // 2,000
AM Part Cost // $24.69 ea (Lead-Time of 8 Days)
IM Part Cost // $28.72 ea (Lead-Time of 40-56 Days, Prototype Tool)
Break-Even Point // 2,150 Parts
Material Used & Weight // PA12 (68.5 g)
Part Dimensions // 140 mm × 25 mm × 140 mm

Injection Molding with Amortized Tool Price



Digital fabrication is proving itself in nearly every major industry because of the value added to most product development and production processes—the extent of which will depend on a variety of company and product specific goals, as well as continued education that opens minds to its value. When evaluating DDM as a serious means to production, take a methodical analysis of cost, design, assembly, materials, and process to fully understand its benefits. Think about it early-on and look to develop a comprehensive DFAM approach that implements fresh designs that best leverage the advantages (e.g. part consolidation, generative design, and lattice structuring). Although any one of these alone can inspire an innovative idea that transforms the status quo, it is often a collective analysis that reveals a game changing opportunity with exponential benefits.

As additive technologies continue to mature and associated costs improve, a greater number of geometries become great candidates for AM. Keep in mind that this is an evolving landscape and every application or geometry is different because of its own unique advantages or challenges. An application that was not a good fit 3, 6, or 12 months ago could very well be a good fit today for AM. If you are interested in exploring this further, contact an additive manufacturing expert at FATHOM who can help you identify whether or not your project may benefit from AM—whether that’s technology and material guidance, or other aspects involved throughout product development and production.
